Walk Forward Correlation (WFC) - A New Algo Trading Tool

The complete methodology, examples, and formal definitions are published on SSRN:
Walk Forward Correlation - SSRN Research Paper →

Walk Forward Correlation: Why This Could Become the New Standard for Strategy Optimisation and Validation

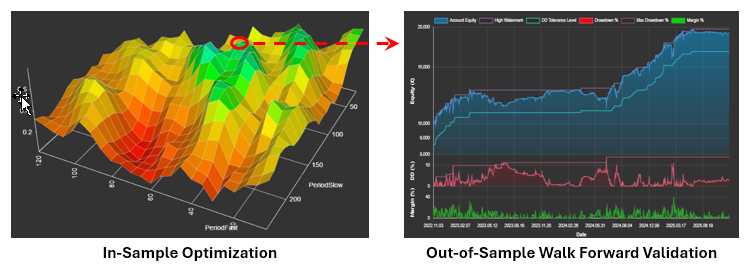

For years, the standard workflow in trading strategy development has looked something like this:

1. Run a parameter optimisation - either single-stage, or multi-stage using Walk Forward Analysis (WFA)
2. Select the “best” in‑sample parameter values (from each stage, if using WFA)
3. Validate those single parameters out‑of‑sample in a walk forward backtest

This approach is so widespread that many practitioners treat it as the default — and as the 'Gold Standard' when also using multi‑stage Walk Forward Analysis (WFA). But whether you run a single optimisation or a full rolling WFA, the same incorrect, underlying assumption remains:

In reality, this assumption is usually false. Relying on it can lead to false confidence, an inability to identify over‑fitting, and strategies that fail the moment they go live.

This is exactly where Walk Forward Correlation (WFC) steps in — and why I believe it will become the de‑facto methodology for assessing robustness and structural edge in trading strategies.

WFC doesn’t replace multi‑stage WFA. It replaces the dependence on a single parameter set as the basis for validation.

The Real Problem: Single‑Parameter Validation Is Fragile

Whether you use a simple optimisation or a full multi‑window WFA, the traditional workflow ultimately evaluates one parameter set per window — the one that happened to look best from the in‑sample optimization.

This creates several issues:

• A single OOS result can be a statistical fluke, especially for smaller sample sizes (number of trades)
• The optimisation surface may be unstable
• IS performance may not predict general OOS behaviour well
• The existence of over‑fitting can remain hidden

Even multi‑stage WFA, while often considered more robust than a single split, due to its ability to stay in tune with changing market regimes, still inherits this limitation: it evaluates only one configuration per window.

WFC solves this by shifting the focus from one set of parameters to the entire n-dimensional paramater surface.

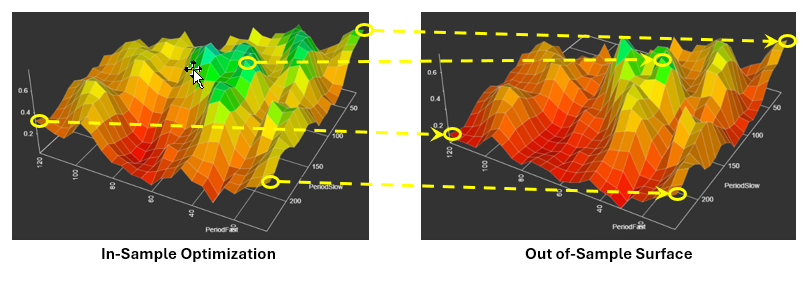

The WFC Research Breakthrough: Correlating the Full IS and OOS Surfaces

During optimisation phases of the strategy development process, the evaluation of parameter combinations is undertaken on both datasets. Each parameter combination has:

• an in‑sample (IS) performance value
• an out‑of‑sample (OOS) performance value

WFC measures the correlation between these two surfaces across the entire parameter grid:

WFC = 𝜌(𝑋,𝑌)

This gives us something traditional validation cannot:

Put simply, it provides an answer to the question: "Do the best results in the in-sample optimization, map to the best results in the out-of-sample dataset?" But also, "Do the poor performing values in the in-sample optimization map to poor results in the out-of-sample?" Plus everything inbetween. This entire evaluation is crucial in order to trust the optimization results, and to ensure over-fitting has not taken place.

Importantly, the OOS optimization is not performed for the purpose of parameter selection - that would introduce a look-forward bias and invalidate results. Instead it is performed solely in order to produce the WFC metric (and scatter chart)

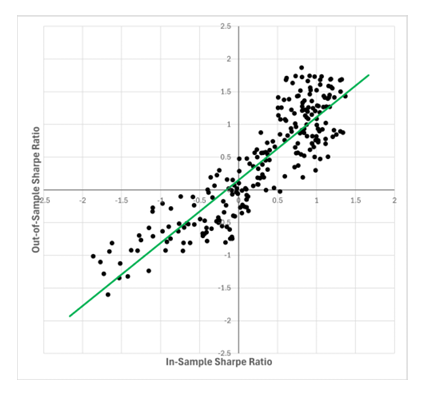

High WFC means one or more of the following:

• IS performance reliably predicts OOS performance
• the optimisation surfaces are stable and predictive
• over‑fitting has been constrained
• structural edge and the ability to extract alpha is likely present - if a sufficient number of points are also in the upper-right quadrant of the chart.

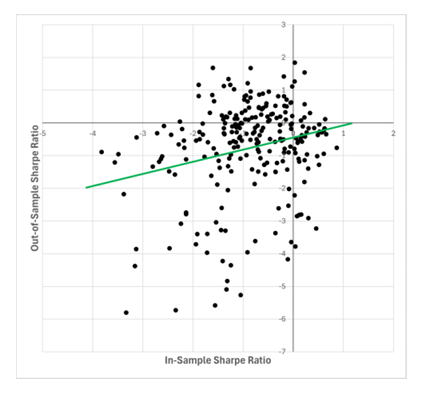

Low WFC means one or more of the following:

• IS performance does not predict OOS performance
• the surfaces are chaotic
• the model is likely over‑fitting
• any individual high-performing OOS result is likely luck - especially when there are a lack of points in the upper-right quadrant of the chart.

This is the kind of insight that single‑parameter validation — even within WFA — simply cannot provide.

Why WFC Could Become the New Default Diagnostic

1. It eliminates the “lucky parameter set” illusion

   Traditional validation can be fooled by a single configuration that performs well OOS by chance. WFC evaluates all configurations, so it cannot be misled by isolated successes.

2. It measures predictive consistency directly

   WFC answers the most important question in optimisation: Does in‑sample performance actually predict out‑of‑sample performance? If not, the strategy is not robust — regardless of how good the best OOS backtest looks.

3. It works with both single‑stage and multi‑stage workflows

   WFC is not a replacement for multi‑stage WFA - it strengthens.

   WFC can be used to improve both:

   • single‑stage optimisation/validation
   • multi‑window Walk Forward Analysis
   In both cases, WFC replaces the fragile practice of validating a strategy using only a single parameter set.

4. It reveals the topology of the optimisation surface

   Smooth, correlated surfaces → higher WFC → more robust strategies, and better practitioner decision-making

   Chaotic, uncorrelated surfaces → lower WFC → fragile, noise‑driven strategies, leading to poor decison-making

   This gives quants and other practitioners a structural understanding of their model, not just a single IS/OOS ratio or performance value.

5. It is simple, intuitive, and computationally light

   Despite its power, WFC is just a correlation between two arrays. It is easy to compute, easy to interpret, and easy to integrate into existing workflows.

A More Honest and Complete Way to Validate Strategies

The industry has relied on single‑parameter validation for many years — often without questioning its limitations. But as markets evolve and models become more complex, we need diagnostics that reflect the true structure of the optimisation landscape.

Walk Forward Correlation provides exactly that.

It helps traders and quants distinguish between:

• genuine structural edge
• noise
• over‑fitting
• unstable parameter regions

What's more, it does so in a way that is transparent, intuitive, and grounded in the full optimisation surface — not a single cherry‑picked parameter set.

This is why I believe WFC has the potential to become the default approach for assessing robustness in trading strategy development.

Read the Full Research Paper

The complete methodology, examples, and formal definitions are published on SSRN:
Walk Forward Correlation - SSRN Research Paper →

Integration of WFC into Opt-My-Strategy (OMS)

Development is currently underway to integrate Walk Forward Correlation analysis into OMS. The target for release is May /June 2026.
